What is IR?

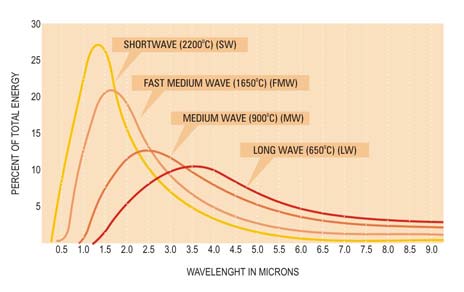

Infrared (IR) is a part of electromagnetic spectrum and lies just beyond red color of visible light. Infrared is invisible. However it has properties similar to light i.e. it travels at the speed of light, it can be directed or focussed and it can travel even in vacuum. When IR radiation is absorbed by an object , heat is generated internally in the object as IR causes the atom of the object to vibrate, raising its temperature. ( Temperature of any substance is a measure of the severity of the vibration of its atoms.) IR does not need a medium like air to heat a substance. IR wavelengths begin at 0.7 microns and wavelengths up to 10 microns have significance as far as industrial heating is concerned. These wavelengths are determined by the IR source temperature and each temperature has a characteristic spectrum with a "peak wavelength". A graph showing typical spectral distribution of energy for different types of IR sources is shown here.


The Ranges are :

SW : 1800 - 2200 oC
FMW : 1200 - 1800 oC
MW : 750 - 1200 oC
LW upto 750 oC

What are the advantages of IR?

Infrared heating is regarded as the preferred source of heating for various applications because of the advantages it offers:

Non contact heating
Better quality of the product


One stage heat transfer
High energy efficiency


Faster rate of heating
Shorter heating cycles, consequently shorter oven lengths for continuous operations


FLow thermal inertia
Shorter heat up and cool down time


Emitters that respond instantly
High controllability and control accuracy


No combustion by-product
Clean system


Modular construction
Flexibility


Is Infrared harmful to human health?

No. All human beings are exposed to infrared in the form of the sun and even through the household electric lamp. It has no known adverse effect on living cells. Over exposure to IR by direct eye contact should be avoided. In fact people use IR for medical use and tanning.


Can Kerone quartz IR lamps be used in vertical positions?

Yes. There are specially manufactured lamps which can be utilized in universal (any orientation) positions. For such applications, please specify this requirement.


Is moisture in my existing process dangerous to IR heating?

No. Contrary to most electric lamps, the quartz in Kerone lamps has significant thermal shock resistance. In fact, to prove this point, a live demonstration of ice cubes on a full intensity IR lamp has been successfully conducted.


Is moisture in my existing process dangerous to IR heating?

No. Contrary to most electric lamps, the quartz in Kerone lamps has significant thermal shock resistance. In fact, to prove this point, a live demonstration of ice cubes on a full intensity IR lamp has been successfully conducted.


Can Kerone quartz IR heaters be used in vacuum conditions?

Yes, IR emitters cn be used in vacuum conditions since it does not require any media for heating. For further clarification kindly mail your query at info@kerone.com
