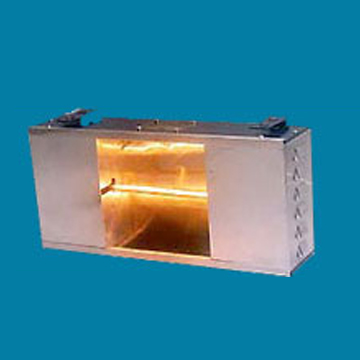

Short Wave Infrared Module

Kerone infrared modules are the ideal solution for the application of infrared heat technology.
They save the user design costs and time and are substantially less expensive than the complete infrared systems.
They are complete and ready for the operation.
This provides advantages for both the, user while installing in to the existing systems and for the planning/ project engineers.
Infrared modules can be individually regulated, controlled and ventilated.
Because of its modular construction it is possible to make the heating panels of practically any size with heaters length up to 40

Applications

Module Code	Length	Width	Depth	Lamp Used	Heated Length	Watts	Volt
	Overall Dimensions(mm)				Lamp Specification
IRN 500	310	80	55	SW 500	127	500	240
IRN 1000	460	80	55	SW 1000	254	1000	240
IRN 1600 S	610	80	55	SW 1600 S	406	1600	240
IRN 1600 D	610	80	55	SW 1600 S	406	1600	415
IRN 2000 S	725	80	55	SW 2000 S	508	2000	240
IRN 2000 D	725	80	55	SW 2000 D	508	2000	415
IRN 2500 D	825	80	55	SW 2500 D	635	2500	415
IRN 3000 S	725	80	55	SW 3000 S	508	3000	240
IRN 3000 D	975	80	55	SW 3000 D	765	3000	415
